Body Configuration
|
Basic
Configuration
|
Battery
|
72V 150Ah Lithium Iron Phosphate Battery
|
|
Motor
|
7.5kW AC Traction Motor
|
|
Controller
|
Intelligent controller with self-protection functions, including electromagnetic interference resistance, anti-racing, start delay and reverse deceleration, and other safety protection features.
|
|
Charger
|
High-frequency intelligent charger
|
|

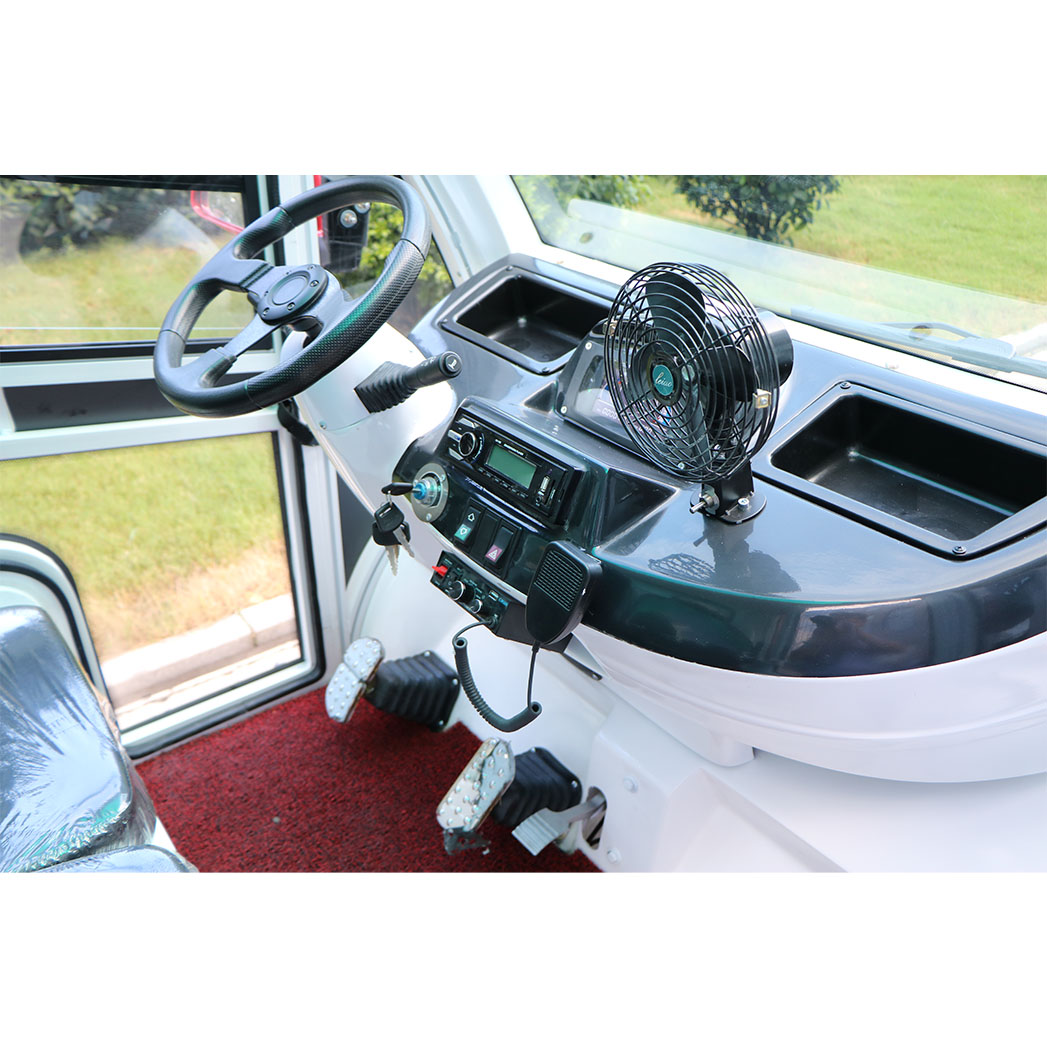

Cab
|
FRP (Fiberglass Reinforced Plastic) cab (optional: doors)）
|
|
Seats
|
Leather soft seats + leather soft cushions + headrests + safety belts
|
|
Rearview Mirrors
|
Wide-angle rearview mirrors
|
|
Lighting and Signals
|
Headlights + turn signals + brake lights + police lights + electric horn + reverse alarm
|
|

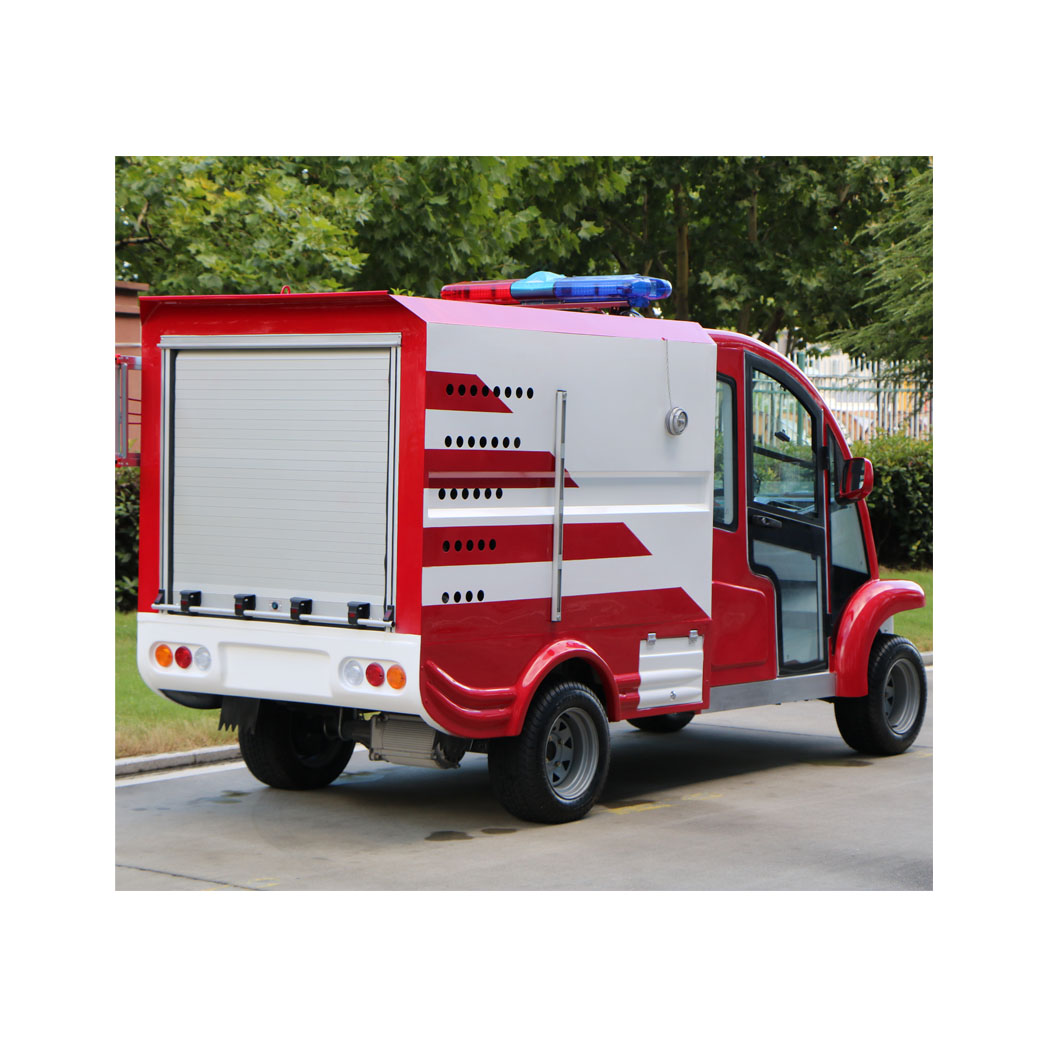

Box Body
|
Closed type
|
|
Paint and Color
|
Adopts well-known domestic brand paint, with customizable spraying schemes available according to customer needs.
|
|
Rear Axle
|
Connected integrated electric differential rear axle
|
|
Frame
|
Frame-type structure, with main beams featuring internal bracing reinforcement
|
|
Tires
|
Radial 12-inch tubeless tires (225/B55-12)
|
|
Brake System
|
Front and rear drum-type dual-circuit hydraulic system + parking brake device
|
|
Steering Mode
|
EPS power steering system + rack and pinion steering gear
|
|
Front Suspension System
|
MacPherson independent suspension
|
|
Rear Suspension System
|
Leaf spring structure + twin-tube hydraulic shock absorbers
|
|
Engine
|
Engine + high-pressure pump
|
|
Fire-Fighting Equipment
|
Aluminum alloy fire ladder + fire bucket + fire wrench + fire shovel + fire hose nozzle + fire hose + fire axe
|
|
Speed Control System
|
Continuously Variable Transmission
|
|
Technical Parameters
|
|
Item Name
|
Unit
|
Parameter
|
|
Rated Passenger Capacity
|
Person
|
2
|
|
Key Dimensions
|
Overall Length
|
mm
|
3770（±2%）
|
|
Overall Width
|
mm
|
1590（±2%）
|
|
Overall Height
|
mm
|
2100（±2%）
|
|
Wheelbase
|
mm
|
2480（±1%）
|
|
Ground Clearance
|
mm
|
150（±1%）
|
|
Box Parameters
|
Length
|
mm
|
1810（±2%）
|
|
Width
|
mm
|
1340（±2%）
|
|
Height
|
mm
|
1140（±2%）
|
|
Material
|
/
|
Color Steel Composite Panel
|
|
Mass Parameters
|
Curb Weight
|
kg
|
1000（±2%）
|
|
Rated Load Capacity
|
kg
|
800
|
|
Driving Performance
|
Maximum Speed
|
km/h
|
30
|
|
Driving Range
|
km
|
≥80
|
|
Braking Performance
|
Brake Type
|
/
|
Front and Rear Drum Brakes
|
|
Braking Distance (Max Speed, Unloaded)
|
m
|
≤4
|
|
Braking Distance (Max Speed, Loaded)
|
m
|
≤5
|
|
Steering
System
|
Steering Method
|
/
|
Steering Wheel
|
|
Steering Assistance
|
/
|
EPS Electronic Power Steering System
|
|
Minimum Turning Radius
|
m
|
≤5.5
|
|
Fire-Fighting Equipment
|
Fire Ladder
|
Piece
|
1 (Extendable: 2m to 4m)
|
|
Fire Axe
|
Piece
|
1
|
|
Fire Hose
|
Roll
|
2 (20-25m per roll)
|
|
Fire Nozzle
|
Piece
|
11 (Size 65#)
|
|
Fire Shovel
|
Piece
|
1
|
|
Fire Wrench
|
Piece
|
1
|
|
Fire Bucket
|
Piece
|
1
|
|
Fire-Fighting and Flushing System
|
Engine Power
|
HP
|
13
|
|
kW
|
9.55
|
|
Fuel Tank Capacity
|
L
|
5
|
|
Water Pump Flushing Flow Rate
|
L/min
|
15
|
|
Flushing Pressure
|
MPa
|
24
|
|
Maximum Climbing Gradient (Half-Load)）
|
/
|
≤15%
|
|
Rear Axle Performance
|
Rated Load Capacity
|
kg
|
1500
|
|
Motor Position
|
/
|
Rear-Mounted Motor
|
